Characteristics
|
| Belt driven | Ball Screw |
 |  |
| H | X |
| Category | Item | Specification |
| Workpiece | Workpiece diameter[mm] | 400 |
| Workpiece length[mm] | 280 |
| Travels | Stroke X[mm] | 400 |
| Stroke Y[mm] | 400 |
| Stroke Z[mm] | 350 |
| Stroke B[deg] | 150 |
| Stroke C[deg] | 360 |
| Rapid traverse(X)[m/min] | 48 |
| Rapid traverse(Y)[m/min] | 48 |
| Rapid traverse(Z)[m/min] | 48 |
| Table | Workpiece allowable Load[kg] | 100 |
| Table Size[mm] | 250 |
Milling spindle 1(H1)
| Spindle name | | | | | | | | Taper | 7:24 taper No. 40 | | | | | | | Rotational speed[rpm] | 12000 | | | | | | | Power[kW] | 13.275 | | | | | | | Torque[Nm] | | | | | | | | Transmission | Belt driven | | | | | | |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 40
| | | | | | | No. of tool storage[ea] | 36
60
| | | | | | | Tool diameter[mm] | 65
| | | | | | | Tool length[mm] | 200
| | | | | | | Tool weight[kg] | 7
| | | | | | | Tool change time(TTT)[s] | 1.6
| | | | | | | Tool change time(CTC)[s] | | | | | | | |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)

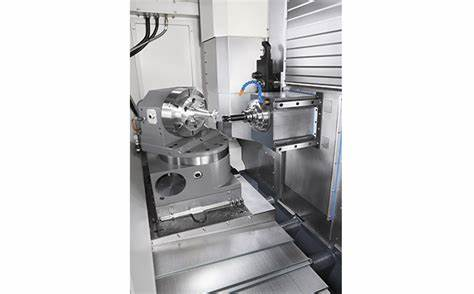

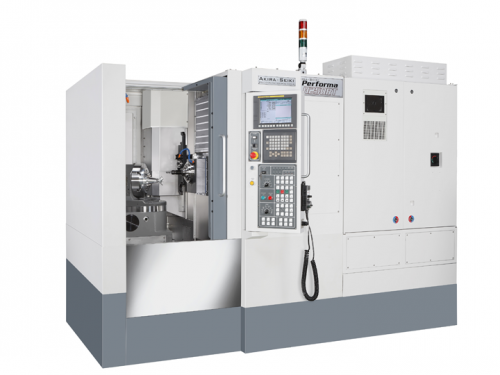

Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
